Plate Measurement (Advanced)

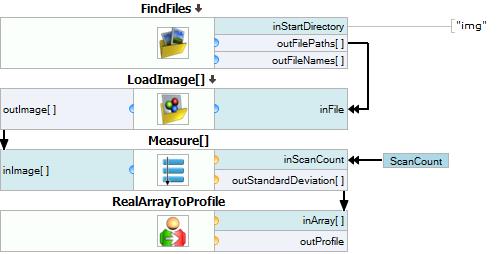

Macrofilter Main

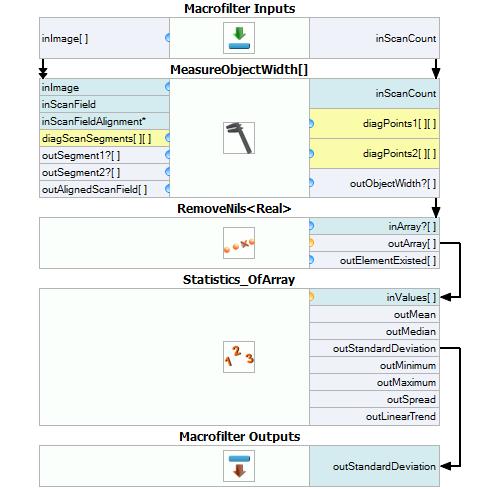

Macrofilter Measure

Used Filters

►Click here to show the filters list.

▼Click here to hide the filters list.

Icon	Name	Description
	MeasureObjectWidth	Measures the width of an object using stripe detection.
	RealArrayToProfile	Converts an array of real numbers to a profile.
	Statistics_OfArray	Computes basic statistical information out of an array of real numbers. The array must be not empty.
	LoadImage	Loads a single image from a file.
	RemoveNils	This filter is useful e.g. when inspecting multiple objects while some of the inspections may fail (Nil result). RemoveNils is used to ignore the failed cases in the final result.
	FindFiles	Returns files of the input directory.
