HMI Configuration Page

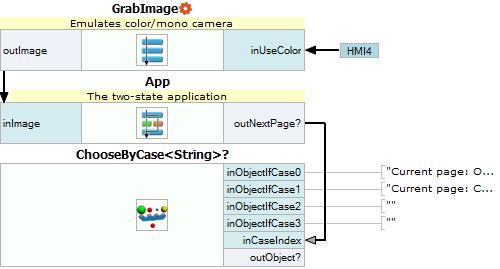

Macrofilter Main

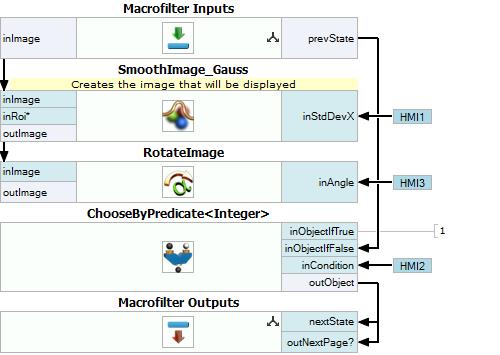

Macrofilter App(0)

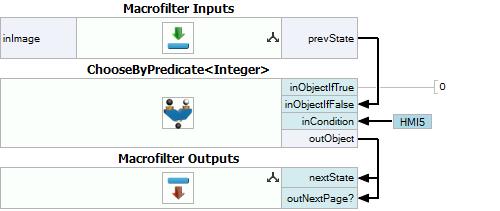

Macrofilter App(1)

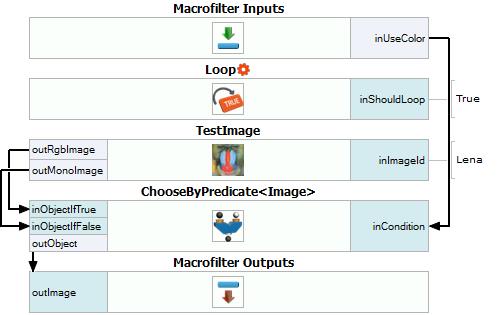

Macrofilter GrabImage

Used Filters

►Click here to show the filters list.

▼Click here to hide the filters list.

Icon	Name	Description
	ChooseByCase	Returns one of the input objects depending on the specified case index.
	ChooseByPredicate	E.g. to choose GREEN color to visualize correct objects or RED to visualize defective ones.
	SmoothImage_Gauss	Removal of gaussian noise from images.
	TestImage	Makes it possible to quickly present results of various image processing filters.
	RotateImage	Rotates an image clockwise.
	Loop	Put this filter into a task that should have a loop, but does not have any other loop generators (e.g. GrabImage).
