Fourier Analysis

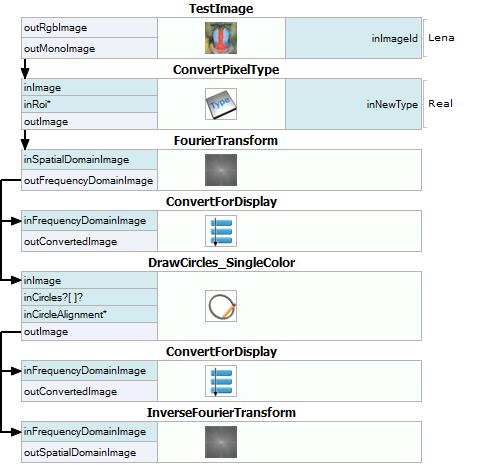

Macrofilter Main

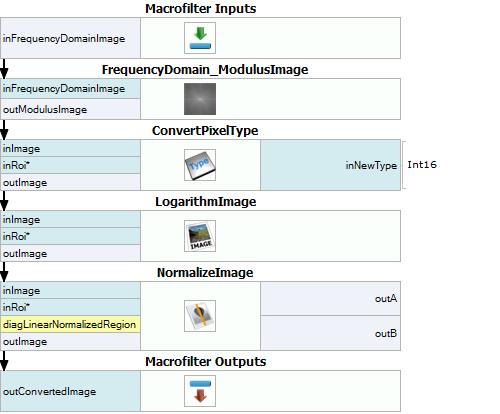

Macrofilter ConvertForDisplay

Used Filters

►Click here to show the filters list.

▼Click here to hide the filters list.

Icon	Name	Description
	FrequencyDomain_ModulusImage	Computes the modulus of each frequency domain image pixel.
	TestImage	Makes it possible to quickly present results of various image processing filters.
	LogarithmImage	Transforms an image in such a way that a quotient on the input image becomes a difference on the output image. This can be useful for dealing with variable illumination.
	FourierTransform	Transforms an image into frequency domain using Fourier transformation
	DrawCircles_SingleColor	Draws circles on an image with a single color.
	NormalizeImage	Rescales an image linearly, so that its minimum becomes inNewMinimum and the maximum of the remaining pixels becomes inNewMaximum.
	InverseFourierTransform	Transforms an image in frequency domain back to spatial domain using inverse Fourier transformation
	ConvertPixelType	Changes the type of pixel components.
