Calibration with Chessboard (Advanced)

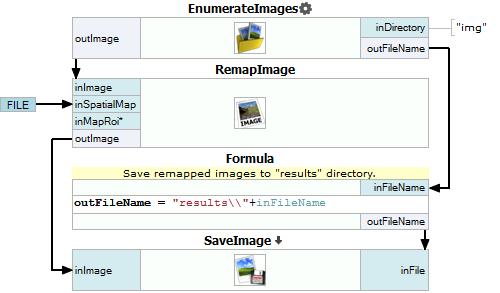

Macrofilter Main

Icon	Name	Description
	EnumerateImages	Emulates image acquisition with images stored on disk.
	RemapImage	Fast (precomputed) image transformations, especially for view undistortion or object geometry correction (e.g. pos recognition of labels on cylindrical bottles).
	CalibrateCamera	Recognition of lens distortion. Usually followed by CreateUndistortionMap.
	GetArrayElement	Extracts a single element from an array at the specified index.
	CreateUndistortionMap	Creation of a transform map that will be used with the RemapImage filter.
	LoadImage	Loads a single image from a file.
	SaveImage	Saves an image to a file.
	SaveObject	Saves an object to a file.
	DetectChessboardGrid	Preparation of data required for creating image undistortion map.
	RemoveNils	This filter is useful e.g. when inspecting multiple objects while some of the inspections may fail (Nil result). RemoveNils is used to ignore the failed cases in the final result.
	FindFiles	Returns files of the input directory.
