You are here: Start » Program Examples » Brick destroy (Game)

Brick destroy (Game)

Macrofilter Main

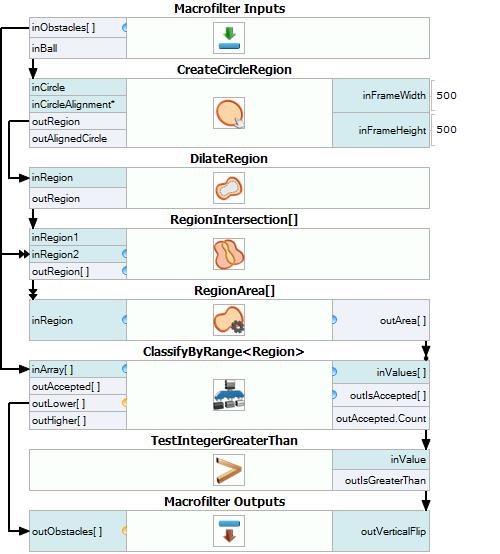

Macrofilter ObstaclesCollisions

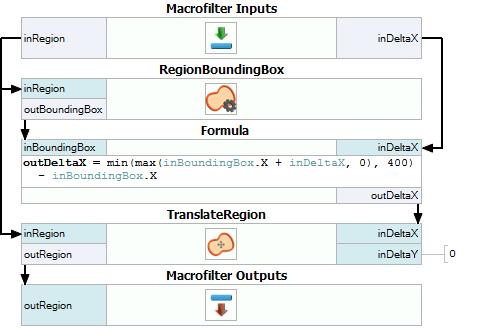

Macrofilter MovePalletWithClipping

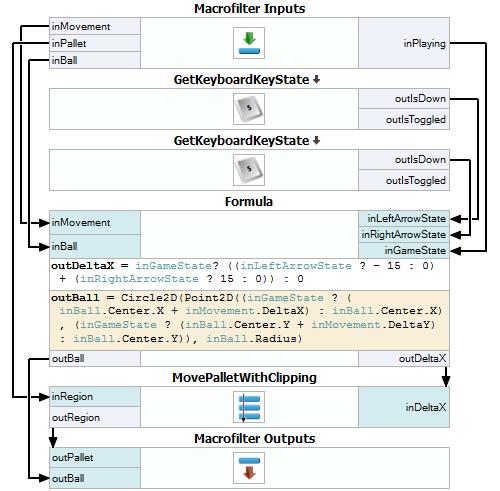

Macrofilter HandleMovement

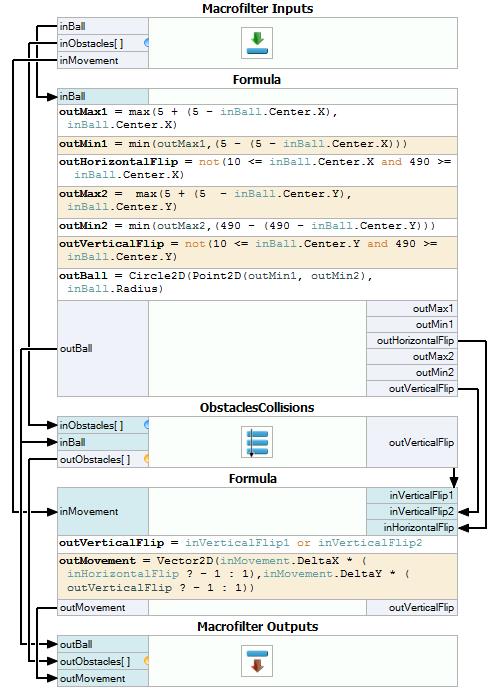

Macrofilter HandleCollisions

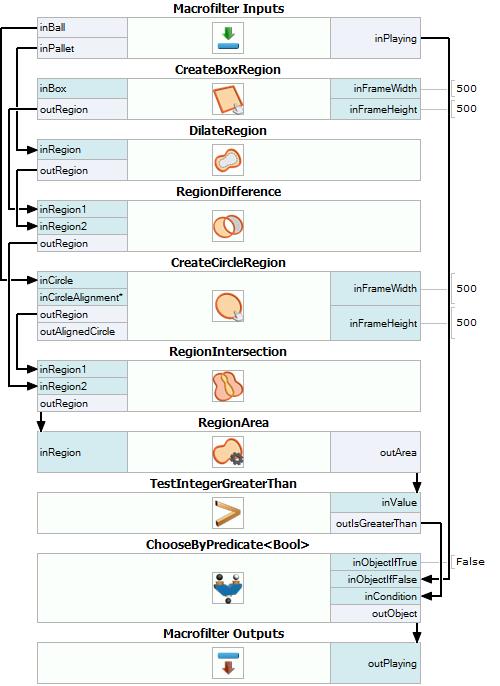

Macrofilter CheckForFailure

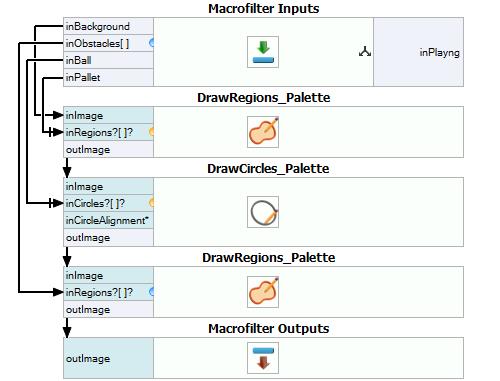

Macrofilter DrawScene(True)

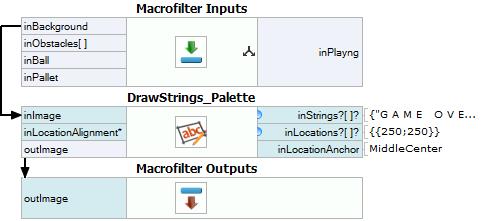

Macrofilter DrawScene(False)

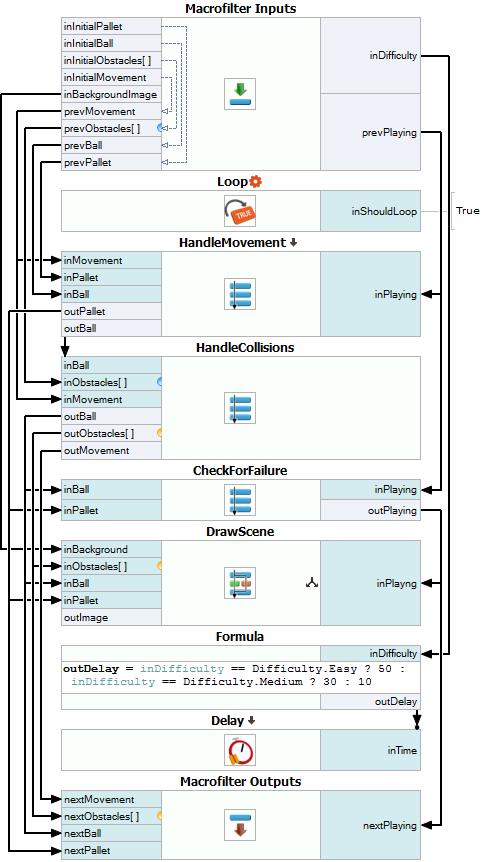

Macrofilter GameLoop

Used Filters

Icon	Name	Description
	Loop	Put this filter into a task that should have a loop, but does not have any other loop generators (e.g. GrabImage).
	Delay	Suspends the program workflow for inTime milliseconds.
	ChooseByPredicate	E.g. to choose GREEN color to visualize correct objects or RED to visualize defective ones.
	RegionBoundingBox	Computes the smallest box containing a region.
	RegionDifference	Computes a region containing pixels from the first input region, but not from the second input region.
	CreateCircleRegion	Creates a circular region corresponding to a given circle.
	CreateBoxRegion	Creates a rectangular region corresponding to a given box.
	RegionIntersection	Computes the common part of two regions.
	DrawCircles_Palette	Draws circles on an image with multiple colors.
	GetKeyboardKeyState	Checks if the specified keyboard key is down and if it is toggled.
	ClassifyByRange	E.g. selection of the objects (e.g. blobs) whose associated values (e.g. area) meet the specified minimum and maximum requirements.
	CreateIntegerSequence	Creates an arithmetic sequence of integer numbers.
	EmptyImage	Creates a uniform image.
	DrawStrings_Palette	Draws strings (text) on an image with multiple colors.
	TranslateRegion	Translates a region by a given number of pixels along each axis.
	DilateRegion	Making the region thicker or filling-in small holes within it.
	TestIntegerGreaterThan	Compares two integers with the > operator.
	RegionArea	Computes the number of pixels contained in a region.
	DrawRegions_Palette	Draws regions on an image with multiple colors.
