Bottle Inspection

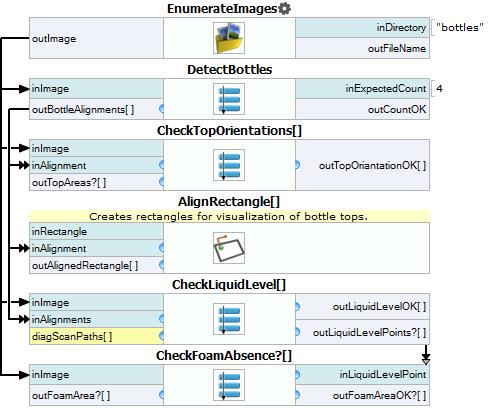

Macrofilter Main

Icon	Name	Description
	EnumerateImages	Emulates image acquisition with images stored on disk.
	CreateRectangle	Creates a rectangle from an aligned point.
	CreateRectangleRegion	Creates a region corresponding to a given rectangle.

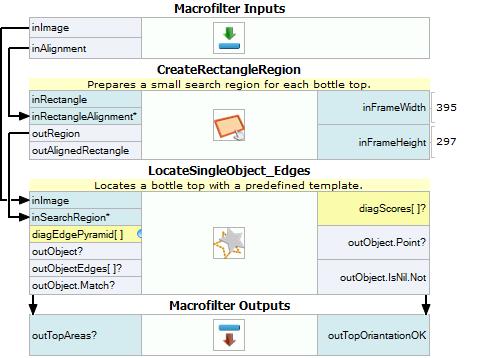

	LocateSingleObject_Edges	Detection of an object whose outlines are sharp and rigid. Often one of the first filters in a program.

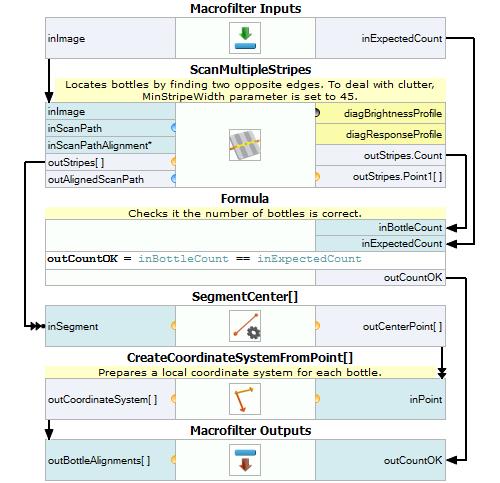

	ScanMultipleStripes	Very fast detection of multiple pairs of opposite edges - usually for counting or width measurements.
	CreateCoordinateSystemFromPoint	Most often used to define an object alignment from results of 1D Edge Detection or Blob Analysis.

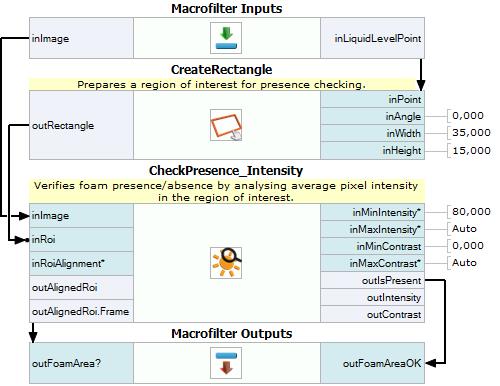

	CheckPresence_Intensity	Quick and easy presence verification, e.g. for missing caps, screws, labels.

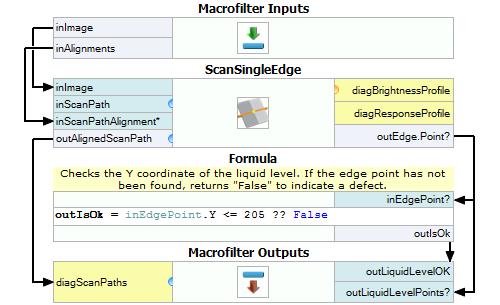

	ScanSingleEdge	Very fast detection of an object (e.g. horizontal displacement of a bottle) and simple measurements (e.g. liquid level in a bottle).
	AlignRectangle	Required when there is a rectangle defined in a local coordinate system, but the next image-related filter in the program does not have any inAlignment input.
	SegmentCenter	Computes the center point of a segment.
