Barcodes (EAN13 Addon5)

Aim

The task is to detect and recognize a single EAN13 Addon5 barcode.

Input

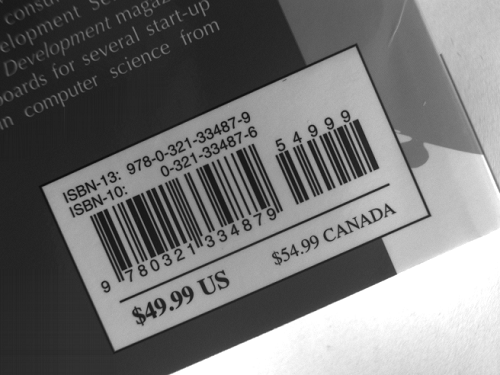

An image containing a EAN13 Addon5 barcode. The position of the barcode is variable.

Output

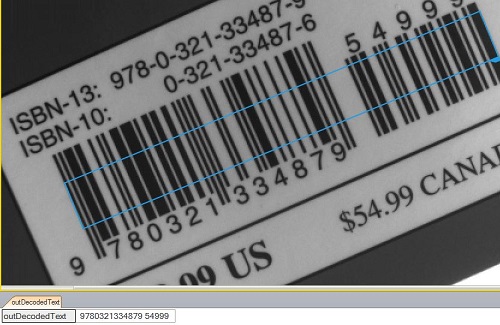

Detected barcode and decoded text.

Solution (AVS)

  1. Add EnumerateImages filter to get load consecutive images of some disk directory.
  2. Add ReadSingleBarcode filter to detect and recognize a barcode.
  3. Set the inBarcodeFormat parameter to EAN13Addon5.
  4. Show the decoded text on a new preview window.

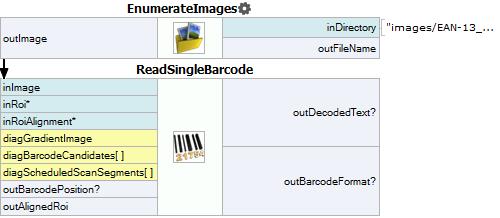

Macrofilter Main

Used Filters

Icon Name Description
EnumerateImages Emulates image acquisition with images stored on disk.
ReadSingleBarcode To be used as an easy all-in-one solution for typical barcode reading applications.
