AVL.RegionProjection Method

Computes the profile of the region pixel count in consecutive rows or columns.

Syntax

public static void RegionProjection(
	AvlNet.Region inRegion,
	AvlNet.ProjectionDirection inProjectionDirection,
	out AvlNet.Profile outProfile
)

Parameters

	Name	Type	Range	Default	Description
	inRegion	AvlNet.Region			Input region.
	inProjectionDirection	AvlNet.ProjectionDirection			Direction in which the pixel occurrences are counted, 'horizontal' means summation row after row, 'vertical' indicates summation column after column.
	outProfile	AvlNet.Profile			Profile of pixel count in consecutive rows/columns.

Examples

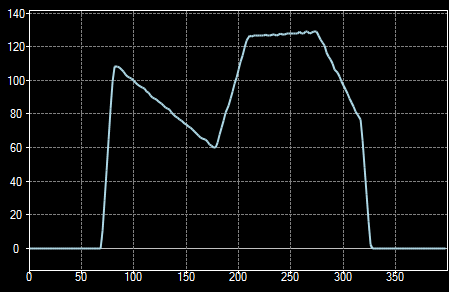

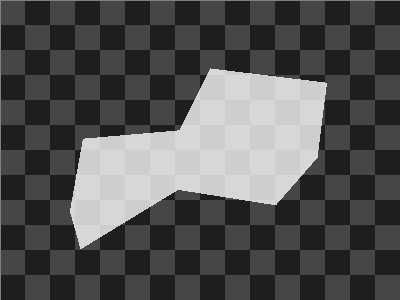

RegionProjection performed on a sample region with inProjectionDirection = Vertical.
