AVL.ProjectPointOnLine Method

Projects a point onto a line.

Namespace:AvlNet
Assembly:AVL.NET.dll

Syntax

public static void ProjectPointOnLine(
	AvlNet.Point2D inPoint,
	AvlNet.Line2D inLine,
	out AvlNet.Point2D outProjectionPoint
)

Parameters

Name Type Range Default Description
inPointAvlNet.Point2D
inLineAvlNet.Line2D
outProjectionPointAvlNet.Point2D

Examples

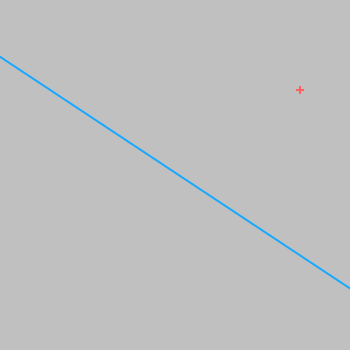

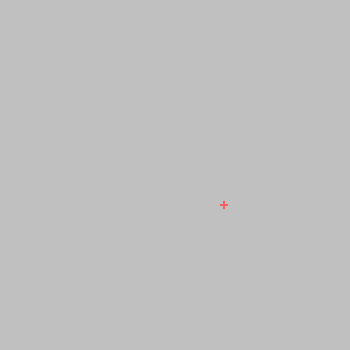

ProjectPointOnLine performed on point and line.

Errors

Error type Description
DomainError Indefinite line on input in ProjectPointOnLine.
