AVL.HistogramDistance Method

Computes the numeric distance between two histograms.

Namespace:AvlNet
Assembly:AVL.NET.dll

Syntax

public static void HistogramDistance(
	AvlNet.Histogram inHistogram1,
	AvlNet.Histogram inHistogram2,
	AvlNet.DistanceMeasure inDistanceMeasure,
	out float outDistance
)

Parameters

Name Type Range Default Description
inHistogram1AvlNet.HistogramFirst input histogram.
inHistogram2AvlNet.HistogramSecond input histogram.
inDistanceMeasureAvlNet.DistanceMeasureMeasure of distance.
outDistancefloatOutput distance value.

Description

The operation computes the approximate difference between two histograms using the selected distance measure.

  • If the inDistanceMeasure is set to MeanError then the resulting outDistance is the average difference between corresponding bins of the histograms.
  • If the inDistanceMeasure is set to MeanSquaredError then the resulting outDistance is the average squared difference between corresponding bins of the histograms.

Examples

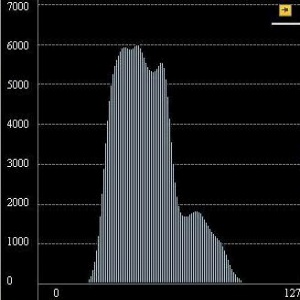

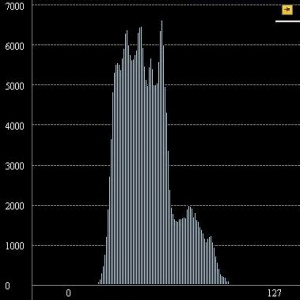

Mean Squared Error between the sample histograms equals 68302.590.

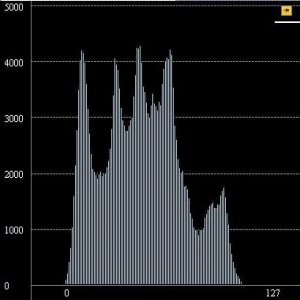

Mean Squared Error between the sample histograms equals 3043686.

Remarks

  • inHistogram1 and inHistogram2 must have the same BinSizes, otherwise an error with appropriate description occurs.

Errors

Error type Description
DomainError Inconsistent histogram bin sizes / domains in HistogramDistance.
DomainError Empty histograms on input in HistogramDistance.
DomainError Not supported DistanceMeasure in HistogramDistance.
