AVL.GetPointOnPath Method

Returns a path point of desired distance (measured along path) from the first point of the path.

Namespace:	AvlNet
Assembly:	AVL.NET.dll

public static void GetPointOnPath(
	AvlNet.Path inPath,
	float inDistanceAlongPath,
	out AvlNet.Point2D outPoint
)

Name	Type	Range	Description
inPath	AvlNet.Path		Input path.
inDistanceAlongPath	float	<0.0f, INF>	Distance along path from the first characteristic point to the desired point.
outPoint	AvlNet.Point2D

Returns a path point of desired distance (measured along path) from the first point of the path.

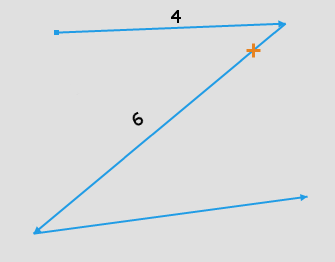

Point with a distance of 5 from path origin.

Error type	Description
DomainError	Desired distance along path exceeds the path length in GetPointOnPath.
