AVL.AppendPointToPath Method
Appends a point to a path.
| Namespace: | AvlNet |
|---|---|
| Assembly: | AVL.NET.dll |
Syntax
public static void AppendPointToPath( ref AvlNet.Path ioPath, AvlNet.Point2D inPoint )
Parameters
| Name | Type | Range | Default | Description | |
|---|---|---|---|---|---|
| ioPath | AvlNet.Path | ||||
 | inPoint | AvlNet.Point2D | Input point. |
Description
The operation extends an open path by adding a single point at its end (the point becomes new end point of a path).
When a closed path is passed to the filter, an error with appropriate description occurs.
Examples
 |
 |
 |

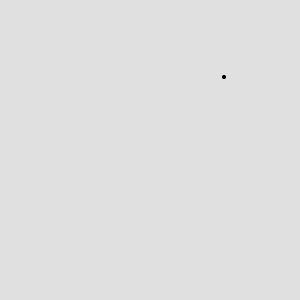

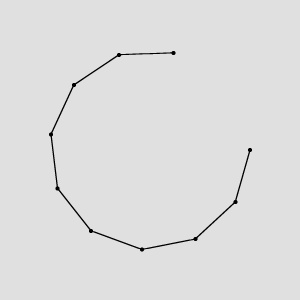

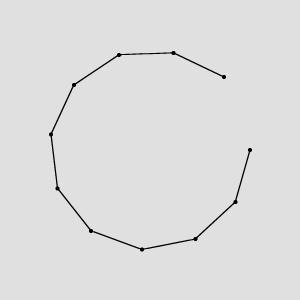

AppendPointToPath run on sample path and point.
Errors
| Error type | Description |
|---|---|
| DomainError | Closed path on input in AppendPointToPath |
