PointsDiameter
Finds the longest segment connecting two points from a given array.
Syntax
C++
C#
void avl::PointsDiameter ( const atl::Array<avl::Point2D>& inPoints, atl::Optional<avl::Segment2D&> outDiameter = atl::NIL, atl::Optional<float&> outDiameterLength = atl::NIL )
Parameters
| Name | Type | Default | Description | |
|---|---|---|---|---|
 |
inPoints | const Array<Point2D>& | Input array of points | |
 |
outDiameter | Optional<Segment2D&> | NIL | Longest segment found |
|
outDiameterLength | Optional<float&> | NIL | Length of longest segment found |
Examples

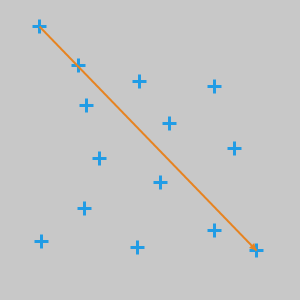

PointsDiameter performed on an array of input points. The orange line is the result.
Errors
| Error type | Description |
|---|---|
| DomainError | Empty array of points on input in PointsDiameter. |
