AVL.AlignLine(AvlNet.Line2D, AvlNet.CoordinateSystem2D, bool, AvlNet.Line2D)
| Namespace: | AvlNet |
|---|---|
| Assembly: | AVL.NET.dll |
Syntax
public static void AlignLine( AvlNet.Line2D inLine, AvlNet.CoordinateSystem2D inAlignment, bool inInverse, out AvlNet.Line2D outLine )
Parameters
- inLine
- Type: AvlNet.Line2D
- inAlignment
- Type: AvlNet.CoordinateSystem2D
- inInverse
- Type: System.Boolean
- outLine
- Type: AvlNet.Line2D
Description
AlignLine aligns the inLine to the inAlignment coordinate system. The input line is translated, rotated and scaled.
The inAlignment is usually a coordinate system found by some template matching algorithm.
Examples
 |
 |

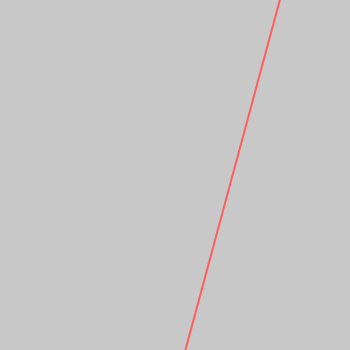

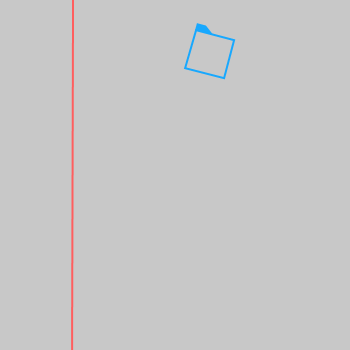

AlignLine performed on the sample line. The inAlignment is drawn on the first image in blue.
Errors
| Error type | Description |
|---|---|
| DomainError | Indefinite line on input in AlignLine. |
