You are here: Start » AVL.NET » AVL.CreateCrossRegion(AvlNet.Box, int, int, AvlNet.Region)

AVL.CreateCrossRegion(AvlNet.Box, int, int, AvlNet.Region)

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void CreateCrossRegion(
	AvlNet.Box inCrossBoundingBox,
	int inFrameWidth,
	int inFrameHeight,
	out AvlNet.Region outRegion
)

Parameters

inCrossBoundingBox: Type: AvlNet.Box
inFrameWidth: Type: System.Int32
inFrameHeight: Type: System.Int32
outRegion: Type: AvlNet.Region

Description

The operation creates a region in a shape of a one-pixel-wide cross. Cross is described by its width, height and coordinates of upper-left corner of its bounding box.

The inFrameWidth and inFrameHeight parameters most often should be set equal to the dimensions of the image this region will be used with. If the input cross exceeds these dimensions, the output region will be cropped.

Examples

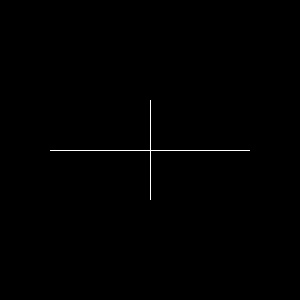

CreateCrossRegion run with inCrossBoundingBox parameters: X = 50, Y = 100, Width = 200, inCrossHeight = 100.

Errors
