You are here: Start » AVL.NET » AVL.ShapeArea(AvlNet.Path, float)

AVL.ShapeArea(AvlNet.Path, float)

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void ShapeArea(
	AvlNet.Path inShape,
	out float outArea
)

Parameters

inShape: Type: AvlNet.Path
outArea: Type: System.Single

Description

The operation computes the area of a shape bounded by a closed path. The area is measured in square pixels. As paths in AVS are subpixel-precise, the result may be (and usually is) non-integer.

Note that if the input path is not a valid shape (i.e. it has at least one self-intersection), the computation may lead to results that are not intuitive.

Examples

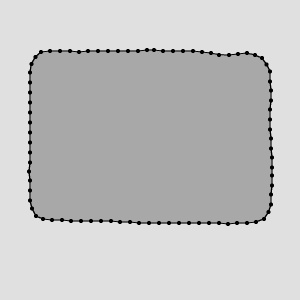

Area of the sample shape equals to 40652.37.

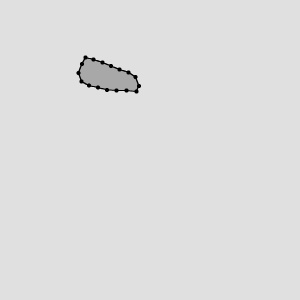

Area of the sample shape equals to 1287.675.

Errors
