AVL.CreateBoxRegion(AvlNet.Box, int, int, AvlNet.Region)

Creates a rectangular region corresponding to a given box.

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void CreateBoxRegion(
	AvlNet.Box inBox,
	int inFrameWidth,
	int inFrameHeight,
	out AvlNet.Region outRegion
)

Parameters

inBox: Type: AvlNet.Box
A box defining pixels that will be converted to white elements
inFrameWidth: Type: System.Int32
Width of the created region's frame (not to be confused with the width of the box!)
inFrameHeight: Type: System.Int32
Height of the created region's frame (not to be confused with the height of the box!)
outRegion: Type: AvlNet.Region
Output region

Description

The operation creates a region containing pixels lying inside the inBox.

The inFrameWidth and inFrameHeight parameters most often should be set equal to the dimensions of the image this region will be used with. If the input box exceeds these dimensions, the output region will be cropped.

Examples

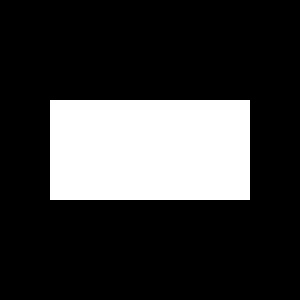

CreateBoxRegion run with inBox = Box(50,100,200,100).
