AVL.DetectChessboardGrid(AvlNet.Image, int, int, AvlNet.Point3D, float, bool, bool, bool, bool, bool, AvlNet.Point2D[], AvlNet.Point3D[])

Namespace:AvlNet
Assembly:AVL.NET.dll

Syntax


public static void DetectChessboardGrid(
	AvlNet.Image inImage,
	int inChessboardWidth,
	int inChessboardHeight,
	AvlNet.Point3D inGridOrigin,
	float inSquareDimension,
	bool inAdaptiveThresholding,
	bool inImageNormalization,
	bool inAdditionalFiltering,
	bool inPresenceCheck,
	bool inSubpixelRefinement,
	out AvlNet.Point2D[] outImageGridPoints,
	out AvlNet.Point3D[] outWorldGridPoints
)

Parameters

inImage
Type: AvlNet.Image
inChessboardWidth
Type: System.Int32
inChessboardHeight
Type: System.Int32
inGridOrigin
Type: AvlNet.Point3D
inSquareDimension
Type: System.Single
inAdaptiveThresholding
Type: System.Boolean
inImageNormalization
Type: System.Boolean
inAdditionalFiltering
Type: System.Boolean
inPresenceCheck
Type: System.Boolean
inSubpixelRefinement
Type: System.Boolean
outImageGridPoints
Type: AvlNet.Point2D
outWorldGridPoints
Type: AvlNet.Point3D

Examples

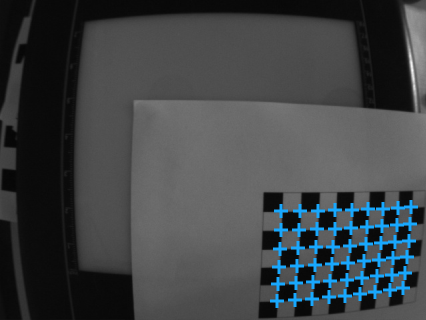

DetectChessboardGrid executed with inChessboardWidth = 10, inChessboardHeight = 7.

Errors

Error type Description
DomainError Empty inImage in DetectChessboardGrid.
DomainError Error in DetectChessboardGrid:Error message
DomainError Error in DetectChessboardGrid: Error message
