AVL.ImageHistogram(AvlNet.Image, AvlNet.Region, int, float, float, float, AvlNet.Histogram)

Computes the histogram of the image pixel values.

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void ImageHistogram(
	AvlNet.Image inImage,
	AvlNet.Region inRoi,
	int inChannelIndex,
	float inBinSize,
	float inDomainBegin,
	float inDomainEnd,
	out AvlNet.Histogram outHistogram
)

Parameters

inImage: Type: AvlNet.Image
Input image
inRoi: Type: AvlNet.Region
Range of pixels to be processed, or null.
inChannelIndex: Type: System.Int32
Selects a channel of the input image
inBinSize: Type: System.Single
Width of a single histogram bin
inDomainBegin: Type: System.Single
The lowest value that will be considered in the output histogram
inDomainEnd: Type: System.Single
The upper-bound for values that will be considered in the output histogram
outHistogram: Type: AvlNet.Histogram
Output histogram

Description

Histogram in Adaptive Vision Studio is a graphical representation of data contained in image. That is, the resulting histogram contains number of pixel values from specified channel with selected inBinSize (interval).

Examples

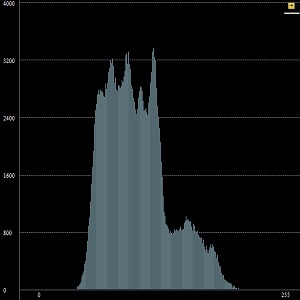

ImageHistogram performed on the Lena image with inChannelIndex = 0, inBinSize = 1.

Errors
