AVL.ImageWatersheds(AvlNet.Image, int, AvlNet.Region[])

Computes dark basins which are separated by at least inThreshold height watershed.

Namespace:AvlNet
Assembly:AVL.NET.dll

Syntax


public static void ImageWatersheds(
	AvlNet.Image inImage,
	int inThreshold,
	out AvlNet.Region[] outBasins
)

Parameters

inImage
Type: AvlNet.Image
Input image
inThreshold
Type: System.Int32
Input minimum separating watershed height
outBasins
Type: AvlNet.Region
Output dark basins found

Description

Image is interpreted as a topographic map, where dark pixels represents valleys. Each step of iteration increase level of water in valleys, until basins are adjacent. Each basin is represented by another region in a result array.

Examples

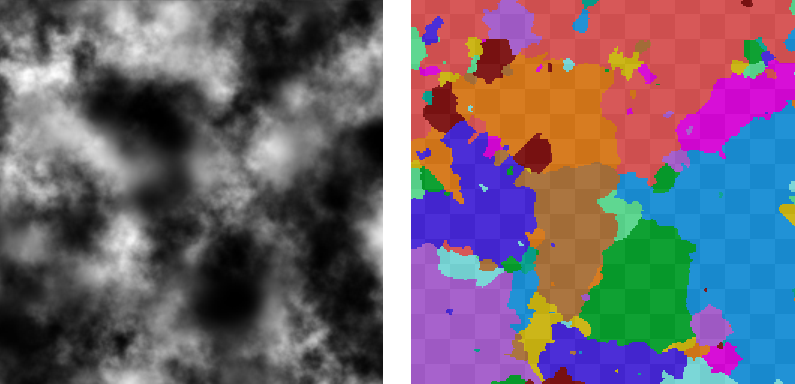

ImageWatersheds performed on the sample image.
