You are here: Start » AVL.NET » AVL.DrawPoints_TwoColors(AvlNet.Image, AvlNet.Point2D?[], AvlNet.CoordinateSystem2D?, AvlNet.Pixel, AvlNet.Pixel, bool?[], AvlNet.DrawingStyle, bool, AvlNet.Image)

AVL.DrawPoints_TwoColors(AvlNet.Image, AvlNet.Point2D?[], AvlNet.CoordinateSystem2D?, AvlNet.Pixel, AvlNet.Pixel, bool?[], AvlNet.DrawingStyle, bool, AvlNet.Image)

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void DrawPoints_TwoColors(
	AvlNet.Image inImage,
	AvlNet.Point2D?[] inPoints,
	AvlNet.CoordinateSystem2D? inPointAlignment,
	AvlNet.Pixel inColorIfTrue,
	AvlNet.Pixel inColorIfFalse,
	bool?[] inConditions,
	AvlNet.DrawingStyle inDrawingStyle,
	bool inForceRgb,
	out AvlNet.Image outImage
)

Parameters

inImage: Type: AvlNet.Image
inPoints: Type: System.Nullable<AvlNet.Point2D>
inPointAlignment: Type: System.Nullable<AvlNet.CoordinateSystem2D>
inColorIfTrue: Type: AvlNet.Pixel
inColorIfFalse: Type: AvlNet.Pixel
inConditions: Type: System.Nullable<System.Boolean>
inDrawingStyle: Type: AvlNet.DrawingStyle
inForceRgb: Type: System.Boolean
outImage: Type: AvlNet.Image

This is Filter Equivalent. This function may be present in generated code, but should not be used in hand-written code.

Description

The operation draws an array of points on the inImage image using common drawing parameters for all of them. The points may exceed the image dimensions - those will be drawn partially or not at all, but the filter execution will succeed.

Examples

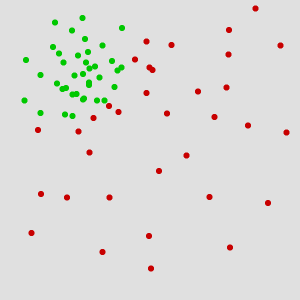

Example usage of the DrawPoints_TwoColors on an empty image.

Errors
