AVL.ThresholdImage_RGB(AvlNet.Image, AvlNet.Region, int?, int?, int?, int?, int?, int?, float, AvlNet.Image)

Namespace:AvlNet
Assembly:AVL.NET.dll

Syntax


public static void ThresholdImage_RGB(
	AvlNet.Image inRgbImage,
	AvlNet.Region inRoi,
	int? inMinRed,
	int? inMaxRed,
	int? inMinGreen,
	int? inMaxGreen,
	int? inMinBlue,
	int? inMaxBlue,
	float inFuzziness,
	out AvlNet.Image outMonoImage
)

Parameters

inRgbImage
Type: AvlNet.Image
inRoi
Type: AvlNet.Region
inMinRed
Type: System.Nullable<System.Int32>
inMaxRed
Type: System.Nullable<System.Int32>
inMinGreen
Type: System.Nullable<System.Int32>
inMaxGreen
Type: System.Nullable<System.Int32>
inMinBlue
Type: System.Nullable<System.Int32>
inMaxBlue
Type: System.Nullable<System.Int32>
inFuzziness
Type: System.Single
outMonoImage
Type: AvlNet.Image

Description

The operation transforms each pixel of three-channel inRgbImage to the maximum or minimum level thus creating binary image. The input image is considered to be encoded using RGB color representation.

  • Pixels meeting all of the following conditions are transformed to the maximum level:
    • Intensity of the "red" channel is in range (inMinRed, inMaxRed).
    • Intensity of the "green" channel is in range (inMinGreen, inMaxGreen).
    • Intensity of the "blue" channel is in range (inMinBlue, inMaxBlue).
  • Other pixels are transformed to the maximum level.

If any of the parameters inMinRed, inMinGreen, inMinBlue is not set, it is assumed to be -infinity. If any of the parameters inMaxRed, inMaxGreen, inMaxBlue is not set, it is assumed to be infinity.

Parameter inFuzziness (set to 0 by default) allows to perform fuzzy thresholding which linearly interpolates those pixel values that differ by at most inFuzziness from the border channel intensities; thus creating smooth transition between minimum and maximum values in the resulting image.

Examples

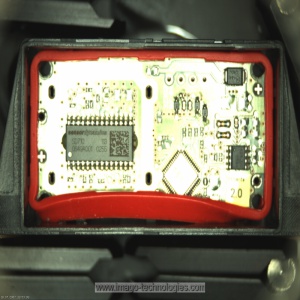

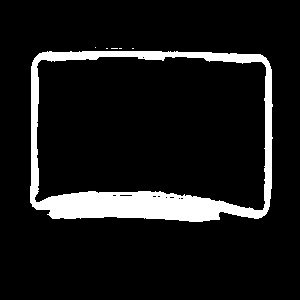

ThresholdImage_RGB performed on the sample image with inMinRed = 120.0, inMaxGreen = 100.0, inMaxBlue = 100.0, inFuzziness = 0.0.

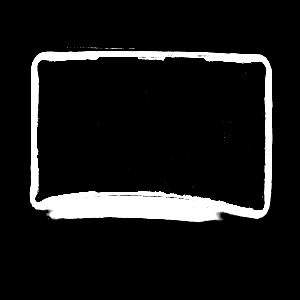

ThresholdImage_RGB performed on the sample image with inMinRed = 120.0, inMaxGreen = 100.0, inMaxBlue = 100.0, inFuzziness = 10.0.

Hardware Acceleration

This operation supports automatic parallelization for multicore and multiprocessor systems.

Hardware acceleration settings may be manipulated with Settings class.

Errors

Error type Description
DomainError Not a 3-channel and 8-bit image in ThresholdImage_RGB.
