You are here: Start » AVL.NET » AVL.PathPathIntersections(AvlNet.Path, AvlNet.Path, AvlNet.Point2D[], int[], int[])

AVL.PathPathIntersections(AvlNet.Path, AvlNet.Path, AvlNet.Point2D[], int[], int[])

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void PathPathIntersections(
	AvlNet.Path inPath1,
	AvlNet.Path inPath2,
	out AvlNet.Point2D[] outIntersectionPoints,
	out int[] outSegmentIndices1,
	out int[] outSegmentIndices2
)

Parameters

inPath1: Type: AvlNet.Path
inPath2: Type: AvlNet.Path
outIntersectionPoints: Type: AvlNet.Point2D
outSegmentIndices1: Type: System.Int32
outSegmentIndices2: Type: System.Int32

Description

The operation computes an array of the intersection points of two given paths.

Examples

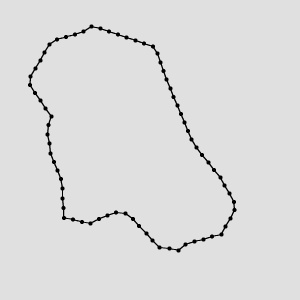

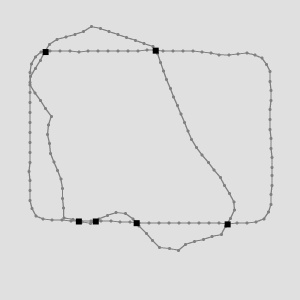

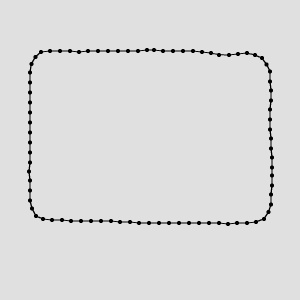

PathPathIntersections run on the sample paths. The resulting outIntersectionPoints were drawn onto the input paths.

See also
