AVL.AlignRectangle(AvlNet.Rectangle2D, AvlNet.CoordinateSystem2D, bool, AvlNet.Rectangle2D)

Namespace:AvlNet
Assembly:AVL.NET.dll

Syntax


public static void AlignRectangle(
	AvlNet.Rectangle2D inRectangle,
	AvlNet.CoordinateSystem2D inAlignment,
	bool inInverse,
	out AvlNet.Rectangle2D outRectangle
)

Parameters

inRectangle
Type: AvlNet.Rectangle2D
inAlignment
Type: AvlNet.CoordinateSystem2D
inInverse
Type: System.Boolean
outRectangle
Type: AvlNet.Rectangle2D

Description

AlignRectangle aligns the inRectangle to the inAlignment coordinate system. The input rectangle is translated, rotated and scaled.

The inAlignment is usually a coordinate system found by some template matching algorithm.

Examples

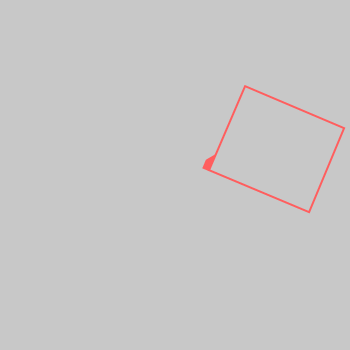

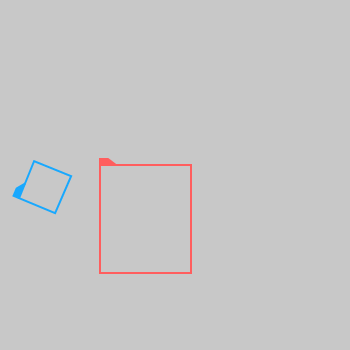

AlignRectangle performed on the sample rectangle. The inAlignment is drawn on the first image in blue.
