You are here: Start » AVL.NET » AVL.DrawRegions_TwoColors(AvlNet.Image, AvlNet.Region[], AvlNet.CoordinateSystem2D?, AvlNet.Pixel, AvlNet.Pixel, bool?[], float, bool, AvlNet.Image)

AVL.DrawRegions_TwoColors(AvlNet.Image, AvlNet.Region[], AvlNet.CoordinateSystem2D?, AvlNet.Pixel, AvlNet.Pixel, bool?[], float, bool, AvlNet.Image)

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void DrawRegions_TwoColors(
	AvlNet.Image inImage,
	AvlNet.Region[] inRegions,
	AvlNet.CoordinateSystem2D? inRegionAlignment,
	AvlNet.Pixel inColorIfTrue,
	AvlNet.Pixel inColorIfFalse,
	bool?[] inConditions,
	float inOpacity,
	bool inForceRgb,
	out AvlNet.Image outImage
)

Parameters

inImage: Type: AvlNet.Image
inRegions: Type: AvlNet.Region
inRegionAlignment: Type: System.Nullable<AvlNet.CoordinateSystem2D>
inColorIfTrue: Type: AvlNet.Pixel
inColorIfFalse: Type: AvlNet.Pixel
inConditions: Type: System.Nullable<System.Boolean>
inOpacity: Type: System.Single
inForceRgb: Type: System.Boolean
outImage: Type: AvlNet.Image

This is Filter Equivalent. This function may be present in generated code, but should not be used in hand-written code.

Description

The operation draws an array of regions on the inImage using common drawing parameters for all of them. Regions may exceed the image dimensions - those will be drawn partially or not at all, but the filter execution will succeed.

Examples

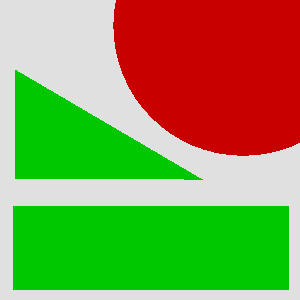

Example usage of the DrawRegions_TwoColors on an empty image.

Errors
