AVL.CheckPresence_Intensity(AvlNet.Image, AvlNet.ShapeRegion, AvlNet.CoordinateSystem2D?, float?, float?, float, float?, bool, float, float, AvlNet.ShapeRegion)

Namespace:AvlNet
Assembly:AVL.NET.dll

Syntax


public static void CheckPresence_Intensity(
	AvlNet.Image inImage,
	AvlNet.ShapeRegion inRoi,
	AvlNet.CoordinateSystem2D? inRoiAlignment,
	float? inMinIntensity,
	float? inMaxIntensity,
	float inMinContrast,
	float? inMaxContrast,
	out bool outIsPresent,
	out float outIntensity,
	out float outContrast,
	out AvlNet.ShapeRegion outAlignedRoi
)

Parameters

inImage
Type: AvlNet.Image
inRoi
Type: AvlNet.ShapeRegion
inRoiAlignment
Type: System.Nullable<AvlNet.CoordinateSystem2D>
inMinIntensity
Type: System.Nullable<System.Single>
inMaxIntensity
Type: System.Nullable<System.Single>
inMinContrast
Type: System.Single
inMaxContrast
Type: System.Nullable<System.Single>
outIsPresent
Type: System.Boolean
outIntensity
Type: System.Single
outContrast
Type: System.Single
outAlignedRoi
Type: AvlNet.ShapeRegion

Description

The filter computes basic statistics of the image pixels in selected ROI and checks if they fit the defined ranges. The used statistics are average and standard deviation of the pixel values.

Examples

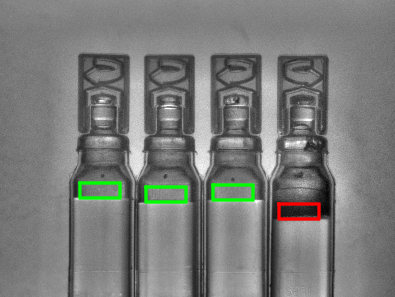

CheckPresence_Intensity performed on sample image with inMinIntensity = 80. The foam is present in red rectangle.
