You are here: Start » AVL.NET » AVL.DrawVectors_Palette(AvlNet.Image, AvlNet.Vector2D?[], AvlNet.Point2D?[], AvlNet.CoordinateSystem2D?, AvlNet.Pixel[], AvlNet.DrawingStyle, float, bool, AvlNet.Image)

AVL.DrawVectors_Palette(AvlNet.Image, AvlNet.Vector2D?[], AvlNet.Point2D?[], AvlNet.CoordinateSystem2D?, AvlNet.Pixel[], AvlNet.DrawingStyle, float, bool, AvlNet.Image)

Namespace:AvlNet
Assembly:AVL.NET.dll

Syntax


public static void DrawVectors_Palette(
	AvlNet.Image inImage,
	AvlNet.Vector2D?[] inVectors,
	AvlNet.Point2D?[] inInitialPoints,
	AvlNet.CoordinateSystem2D? inVectorAlignment,
	AvlNet.Pixel[] inColors,
	AvlNet.DrawingStyle inDrawingStyle,
	float inHeadSize,
	bool inForceRgb,
	out AvlNet.Image outImage
)

Parameters

inImage
Type: AvlNet.Image
inVectors
Type: System.Nullable<AvlNet.Vector2D>
inInitialPoints
Type: System.Nullable<AvlNet.Point2D>
inVectorAlignment
Type: System.Nullable<AvlNet.CoordinateSystem2D>
inColors
Type: AvlNet.Pixel
inDrawingStyle
Type: AvlNet.DrawingStyle
inHeadSize
Type: System.Single
inForceRgb
Type: System.Boolean
outImage
Type: AvlNet.Image

This is Filter Equivalent. This function may be present in generated code, but should not be used in hand-written code.

Examples

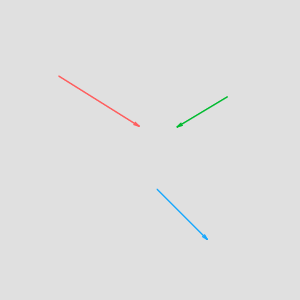

Example usage of the DrawVectors_Palette on an empty image.

Errors

Error type Description
DomainError Inconsistent input array sizes in DrawVectors_Palette.
