AVL.PointToSegmentDistance(AvlNet.Point2D, AvlNet.Segment2D, float, float, AvlNet.Segment2D)

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void PointToSegmentDistance(
	AvlNet.Point2D inPoint,
	AvlNet.Segment2D inSegment,
	float inResolution,
	out float outDistance,
	out AvlNet.Segment2D outConnectingSegment
)

Parameters

inPoint: Type: AvlNet.Point2D
inSegment: Type: AvlNet.Segment2D
inResolution: Type: System.Single
outDistance: Type: System.Single
outConnectingSegment: Type: AvlNet.Segment2D

Examples

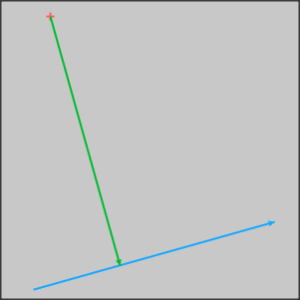

PointToSegmentDistance performed on a sample point and a sample segment. The green segment is the value of outConnectingSegment output.
