AVL.SmoothPath_Gauss(AvlNet.Path, float, float, AvlNet.Path)

Smooths a path by averaging its characteristic points within a kernel using gaussian-weighted average.

Namespace:AvlNet
Assembly:AVL.NET.dll

Syntax


public static void SmoothPath_Gauss(
	AvlNet.Path inPath,
	float inStdDev,
	float inKernelRelativeSize,
	out AvlNet.Path outPath
)

Parameters

inPath
Type: AvlNet.Path
Input path
inStdDev
Type: System.Single
Smoothing standard deviation
inKernelRelativeSize
Type: System.Single
A multiple of the standard deviation determining the size of the kernel
outPath
Type: AvlNet.Path
Output path

Description

The operation replaces each characteristic point of the path with the local gaussian average, thus smoothing its shape. The local average is computed as a gaussian mean of the consecutive inStdDev*inKernelRelativeSize characteristic points.

Examples

A sample path

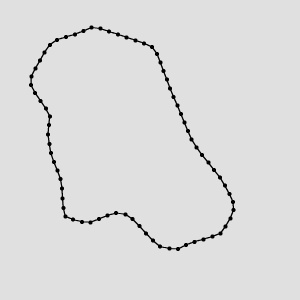

SmoothPath_Gauss run on the sample path with inStdDev = 0.6 and inKernelRelativeSize = 3.

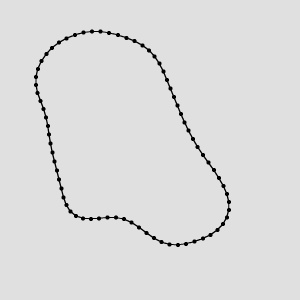

SmoothPath_Gauss run on the sample path with inStdDev = 2 and inKernelRelativeSize = 3.
