AVL.CreateRectangleRegion(AvlNet.Rectangle2D, AvlNet.CoordinateSystem2D?, int, int, AvlNet.Region, AvlNet.Rectangle2D)

Namespace:AvlNet
Assembly:AVL.NET.dll

Syntax


public static void CreateRectangleRegion(
	AvlNet.Rectangle2D inRectangle,
	AvlNet.CoordinateSystem2D? inRectangleAlignment,
	int inFrameWidth,
	int inFrameHeight,
	out AvlNet.Region outRegion,
	out AvlNet.Rectangle2D outAlignedRectangle
)

Parameters

inRectangle
Type: AvlNet.Rectangle2D
inRectangleAlignment
Type: System.Nullable<AvlNet.CoordinateSystem2D>
inFrameWidth
Type: System.Int32
inFrameHeight
Type: System.Int32
outRegion
Type: AvlNet.Region
outAlignedRectangle
Type: AvlNet.Rectangle2D

Description

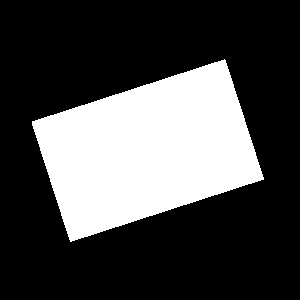

The operation creates a region containing pixels lying inside the specified rectangle.

The inFrameWidth and inFrameHeight parameters most often should be set equal to the dimensions of the image this region will be used with. If the input rectangle exceeds these dimensions, the output region will be cropped.

Examples

See also
