AVL.ShapeMassCenter(AvlNet.Path, AvlNet.Point2D)

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void ShapeMassCenter(
	AvlNet.Path inShape,
	out AvlNet.Point2D outMassCenter
)

Parameters

inShape: Type: AvlNet.Path
outMassCenter: Type: AvlNet.Point2D

Description

The operation computes the mass center of a shape bounded by a closed path.

Note that if the input path is not a valid shape (i.e. it has at least one self-intersection), the computation may lead to results that are not intuitive.

Examples

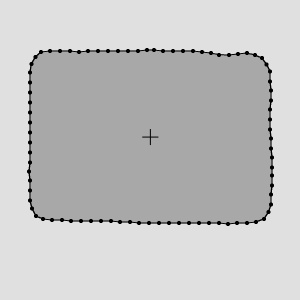

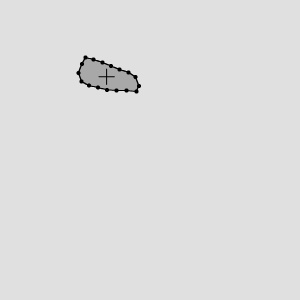

The resulting outMassCenters drawn onto the sample shapes.

Errors
