AVL.ScanSingleEdge(AvlNet.Image, AvlNet.ScanMap, AvlNet.EdgeScanParams, AvlNet.Selection, AvlNet.LocalBlindness, AvlNet.Edge1D?, AvlNet.Profile, AvlNet.Profile)

Locates the strongest transition between dark and bright pixels along a given path.

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void ScanSingleEdge(
	AvlNet.Image inImage,
	AvlNet.ScanMap inScanMap,
	AvlNet.EdgeScanParams inEdgeScanParams,
	AvlNet.Selection inEdgeSelection,
	AvlNet.LocalBlindness inLocalBlindness,
	out AvlNet.Edge1D? outEdge,
	out AvlNet.Profile diagBrightnessProfile,
	out AvlNet.Profile diagResponseProfile
)

Parameters

inImage: Type: AvlNet.Image
Input image
inScanMap: Type: AvlNet.ScanMap
Data precomputed with CreateScanMap
inEdgeScanParams: Type: AvlNet.EdgeScanParams
Parameters controlling the edge extraction process
inEdgeSelection: Type: AvlNet.Selection
Selection mode of the resulting edge
inLocalBlindness: Type: AvlNet.LocalBlindness
Defines conditions in which weaker edges can be detected in the vicinity of stronger edges, or null.
outEdge: Type: System.Nullable<AvlNet.Edge1D>
Found edge
diagBrightnessProfile: Type: AvlNet.Profile
Extracted image profile
diagResponseProfile: Type: AvlNet.Profile
Profile of the edge (derivative) operator response

Description

The operation scans the image using inScanMap previously generated from a scan path and locates the strongest edge perpendicular to the path. If the strongest edge is weaker than inEdgeScanParams.minMagnitude then the outputs are set to NIL.

Examples

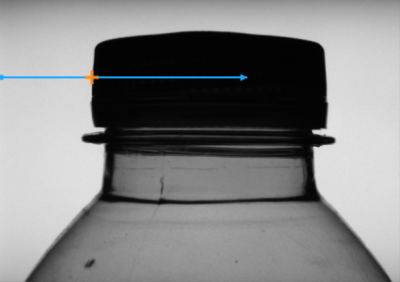

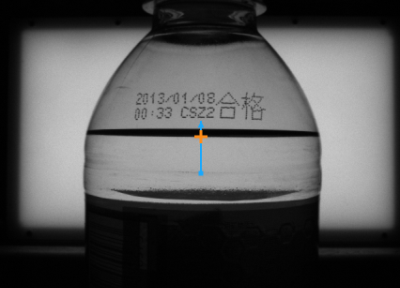

ScanSingleEdge locates the strongest edge using a scan map representing the scan path above.

Remarks

For more information about local coordinate systems please refer to the following article.
