AVL.CompareGoldenTemplate_Intensity(AvlNet.Image, AvlNet.GrayGoldenTemplate, AvlNet.CoordinateSystem2D?, float, int, AvlNet.Region, AvlNet.Region, bool, AvlNet.Region)

Compares an image with a template image considered to have no defects.

Namespace:AvlNet
Assembly:AVL.NET.dll

Syntax


public static void CompareGoldenTemplate_Intensity(
	AvlNet.Image inImage,
	AvlNet.GrayGoldenTemplate inGoldenTemplate,
	AvlNet.CoordinateSystem2D? inGoldenTemplateAlignment,
	float inMaxDifference,
	int inMinDefectRadius,
	out AvlNet.Region outDefects,
	out AvlNet.Region outDifferenceRegion,
	out bool outDefectsPresent,
	out AvlNet.Region outEdgeRegion
)

Parameters

inImage
Type: AvlNet.Image
Input image
inGoldenTemplate
Type: AvlNet.GrayGoldenTemplate
Golden gray template containing image of an object with no defects
inGoldenTemplateAlignment
Type: System.Nullable<AvlNet.CoordinateSystem2D>
Adjusts the golden template to the position of the inspected object, or null.
inMaxDifference
Type: System.Single
Maximal allowed difference between corresponding pixels of the input and golden images
inMinDefectRadius
Type: System.Int32
Minimal radius of a defect
outDefects
Type: AvlNet.Region
Region of detected defects
outDifferenceRegion
Type: AvlNet.Region
Region of pixels differing too much between the golden image and the input image
outDefectsPresent
Type: System.Boolean
Flag indicating whether any defects were detected
outEdgeRegion
Type: AvlNet.Region
Region of pixels that will not be compared

Description

This filter compares pixels of the input images against a template image stored in passed inGoldenTemplate input. Then creates a region containing only pixels in which intensity difference is higher than inMaxDifference value as a result. This method is especially useful for finding defects like: smudges, noises and dust particles. It can be used for finding missing holes or changes in complex shapes.

When the defected pixels are found only consistent regions are selected. Minimal radius of accepted region is set in inMinDefectRadius.

You can define a part of an image when defining inGoldenTemplate.

More information about this technique can be found in Machine Vision Guide: Golden Template.

Examples

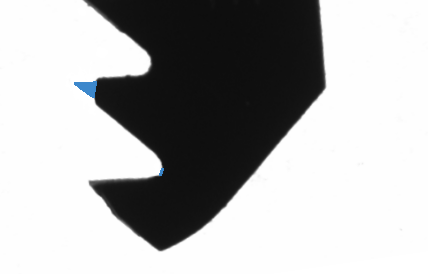

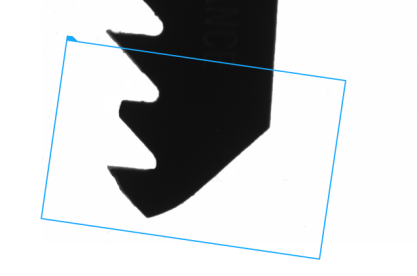

CompareGoldenTemplate_Intensity performed on sample image. A part of the object is missing – it is marked in blue on the right.

Remarks

Due to performance, it is recommended to create a template using the CreateGoldenTemplate_Edges filter outside a main loop of a program. It will create a model only once, instead of each iteration.

Errors

Error type Description
DomainError Input image format is incompatible with golden template image format in CompareGoldenTemplate_Intensity.
