AVL.OpenImage(AvlNet.Image, AvlNet.Region, AvlNet.Region, AvlNet.Pixel?, AvlNet.ImageMorphologyKernel, int, int?, AvlNet.Image, AvlNet.Region)

Removes small bright structures from an image (or fills in dark ones) by applying consecutive erosion and dilation.

Namespace:AvlNet
Assembly:AVL.NET.dll

Syntax


public static void OpenImage(
	AvlNet.Image inImage,
	AvlNet.Region inRoi,
	AvlNet.Region inSourceRoi,
	AvlNet.Pixel? inBorderColor,
	AvlNet.ImageMorphologyKernel inKernel,
	int inRadiusX,
	int? inRadiusY,
	out AvlNet.Image outImage,
	out AvlNet.Region diagKernel
)

Parameters

inImage
Type: AvlNet.Image
Input image
inRoi
Type: AvlNet.Region
Range of outImage pixels to be computed, or null.
inSourceRoi
Type: AvlNet.Region
Range of inImage pixels to be considered in computations, or null.
inBorderColor
Type: System.Nullable<AvlNet.Pixel>
Color of the imaginary pixels outside the image boundaries, or null.
inKernel
Type: AvlNet.ImageMorphologyKernel
Kernel shape
inRadiusX
Type: System.Int32
Nearly half of the kernel's width (2*R+1)
inRadiusY
Type: System.Nullable<System.Int32>
Nearly half of the kernel's height (2*R+1), or same as inRadiusX, or null.
outImage
Type: AvlNet.Image
Output image
diagKernel
Type: AvlNet.Region
Kernel shape

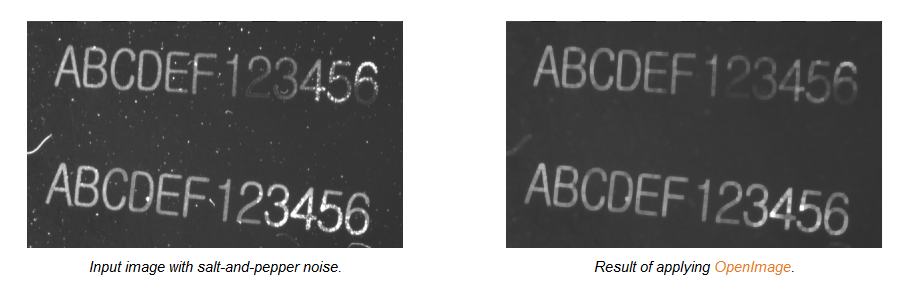

Examples

Hardware Acceleration

This operation is optimized for SSE2 technology for pixels of types: all formats (when inSourceRoi = NIL and inBorderColor = NIL).

This operation supports automatic parallelization for multicore and multiprocessor systems.

Hardware acceleration settings may be manipulated with Settings class.
