AVL.RegionIntersection(AvlNet.Region, AvlNet.Region, AvlNet.Region)

Computes the common part of two regions.

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void RegionIntersection(
	AvlNet.Region inRegion1,
	AvlNet.Region inRegion2,
	out AvlNet.Region outRegion
)

Parameters

inRegion1: Type: AvlNet.Region
First input region
inRegion2: Type: AvlNet.Region
Second input region
outRegion: Type: AvlNet.Region
Output region

Description

The operation computes the logical intersection of two given regions. That is, the resulting region contains pixel locations that belong to both of the given regions. Both dimensions (width and height) of the resulting region are set to the minimum of the corresponding dimensions of the input regions.

Examples

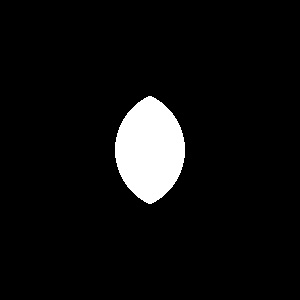

RegionIntersection run on the sample regions.

Errors
