AVL.AngleBetweenDirections(float, float, AvlNet.RotationDirection?, AvlNet.AngleRange, float, float)

Namespace:AvlNet
Assembly:AVL.NET.dll

Syntax


public static void AngleBetweenDirections(
	float inDirection1,
	float inDirection2,
	AvlNet.RotationDirection? inRotationDirection,
	AvlNet.AngleRange inAngleRange,
	out float outAbsoluteAngle,
	out float outDirectedAngle
)

Parameters

inDirection1
Type: System.Single
inDirection2
Type: System.Single
inRotationDirection
Type: System.Nullable<AvlNet.RotationDirection>
inAngleRange
Type: AvlNet.AngleRange
outAbsoluteAngle
Type: System.Single
outDirectedAngle
Type: System.Single

Description

Direction is a number in the range of <0, 180) or <0, 360). This is controlled with the inAngleRange input. The angle is computed from first to second direction clockwise or counter-clockwise. If the rotation direction is not specified, chosen is the one that produces smaller absolute angle.

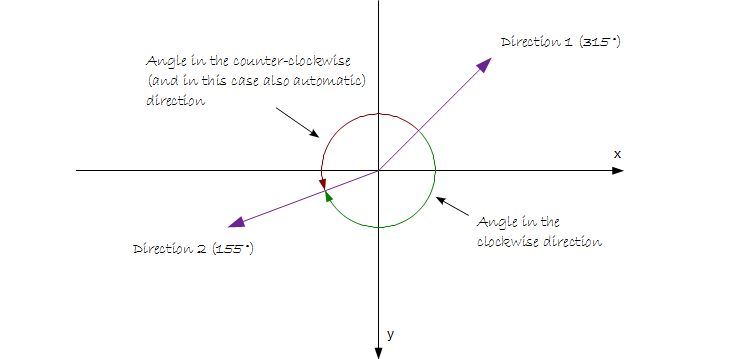

Examples

See also
