AVL.AlignPoint(AvlNet.Point2D, AvlNet.CoordinateSystem2D, bool, AvlNet.Point2D)
| Namespace: | AvlNet |
|---|---|
| Assembly: | AVL.NET.dll |
Syntax
public static void AlignPoint( AvlNet.Point2D inPoint, AvlNet.CoordinateSystem2D inAlignment, bool inInverse, out AvlNet.Point2D outPoint )
Parameters
- inPoint
- Type: AvlNet.Point2D
- inAlignment
- Type: AvlNet.CoordinateSystem2D
- inInverse
- Type: System.Boolean
- outPoint
- Type: AvlNet.Point2D
Description
AlignPoint aligns the inPoint to the inAlignment coordinate system. The input point is translated, rotated and scaled.
The inAlignment is usually a coordinate system found by some template matching algorithm.
Examples
 |
 |

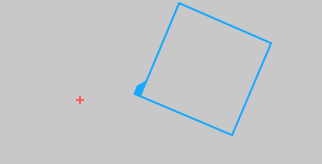

AlignPoint performed on the sample point. The inAlignment is drawn on the first image in blue.
