You are here: Start » AVL.NET » AVL.ColorizeImage(AvlNet.ColorizeImageState, AvlNet.Image, AvlNet.Region, AvlNet.ColorPalette, bool, int?, int?, AvlNet.Image)

AVL.ColorizeImage(AvlNet.ColorizeImageState, AvlNet.Image, AvlNet.Region, AvlNet.ColorPalette, bool, int?, int?, AvlNet.Image)

Namespace:AvlNet
Assembly:AVL.NET.dll

Syntax


public static void ColorizeImage(
	ref AvlNet.ColorizeImageState ioState,
	AvlNet.Image inImage,
	AvlNet.Region inRoi,
	AvlNet.ColorPalette inPalette,
	bool inNegate,
	int? inMinValue,
	int? inMaxValue,
	out AvlNet.Image outImage
)

Parameters

ioState
Type: AvlNet.ColorizeImageState
inImage
Type: AvlNet.Image
inRoi
Type: AvlNet.Region
inPalette
Type: AvlNet.ColorPalette
inNegate
Type: System.Boolean
inMinValue
Type: System.Nullable<System.Int32>
inMaxValue
Type: System.Nullable<System.Int32>
outImage
Type: AvlNet.Image

Description

This filter is especially useful for visualization purposes. Hue and RedBlue pallets are useful for scientific visualization and the Iron palette is prepared for showing infrared images in thermo-graphic appliances.

Parameters inMinValue and inMaxValue defines the scale that should be applied to image pixels. Pixels outside this range are reduced to minimal or maximal value in range.

If parameters inMinValue or inMaxValue is set to Auto the filter will find the maximal or minimal pixel value.

This filter works only with single channel images.

Examples

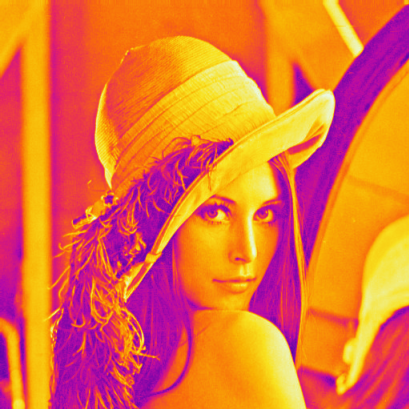

The ColorizeImage performed on the result of TestImage with inPalette set to Iron.

Remarks

Filter pre-computes after changing its parameter which can affect the filter's execution speed. Try to avoid changing filter's parameter during program execution.

Hardware Acceleration

This operation supports automatic parallelization for multicore and multiprocessor systems.

Hardware acceleration settings may be manipulated with Settings class.

Errors

Error type Description
DomainError Input image must have 1xUInt8 or 1xUInt16 format in ColorizeImage.
DomainError inMinValue is bigger than inMaxValue in ColorizeImage.

See also
