AVL.RegionSymmetricDifference(AvlNet.Region, AvlNet.Region, AvlNet.Region)

Computes a region containing pixels from first or second input region, but not from both.

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void RegionSymmetricDifference(
	AvlNet.Region inRegion1,
	AvlNet.Region inRegion2,
	out AvlNet.Region outRegion
)

Parameters

inRegion1: Type: AvlNet.Region
First input region
inRegion2: Type: AvlNet.Region
Second input region
outRegion: Type: AvlNet.Region
Output region

Description

The operation computes the logical symmetric difference of two given regions. That is, the resulting region contains pixel locations that belong to one of the given regions, but not to both of them. Both dimensions (width and height) of the resulting region are set to the maximum of the corresponding dimensions of the input regions.

Examples

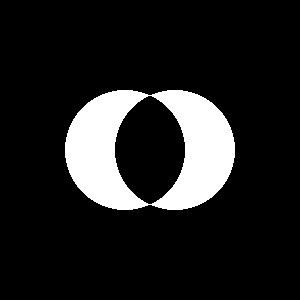

RegionSymmetricDifference run on the sample regions.

Errors
