AVL.RegionUnion(AvlNet.Region, AvlNet.Region, AvlNet.Region)

Computes a region containing pixels from both input regions.

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void RegionUnion(
	AvlNet.Region inRegion1,
	AvlNet.Region inRegion2,
	out AvlNet.Region outRegion
)

Parameters

inRegion1: Type: AvlNet.Region
First input region
inRegion2: Type: AvlNet.Region
Second input region
outRegion: Type: AvlNet.Region
Output region

Description

The operation computes the logical union of two given regions. That is, the resulting region contains pixel locations that belong to one or both of the given regions. Both dimensions (width and height) of the resulting region are set to the maximum of corresponding dimensions of the input regions.

Examples

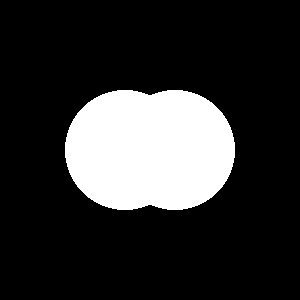

RegionUnion run on the sample regions.

Errors
