AVL.DetectLines(AvlNet.Image, AvlNet.Region, float, float, float, float, float, AvlNet.Line2D[], float[], AvlNet.Image, AvlNet.Image)

Finds lines in an image.

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void DetectLines(
	AvlNet.Image inImage,
	AvlNet.Region inRoi,
	float inAngleResolution,
	float inMinAngleDelta,
	float inMinDistance,
	float inMinScore,
	float inEdgeThreshold,
	out AvlNet.Line2D[] outLines,
	out float[] outScores,
	out AvlNet.Image diagGradientMagnitudeImage,
	out AvlNet.Image diagScoreImage
)

Parameters

inImage: Type: AvlNet.Image
Input image
inRoi: Type: AvlNet.Region
Input region of interest, or null.
inAngleResolution: Type: System.Single
Resolution of lines' orientation
inMinAngleDelta: Type: System.Single
Minimum angle between two lines
inMinDistance: Type: System.Single
Minimum distance between two lines
inMinScore: Type: System.Single
Minimum matching score
inEdgeThreshold: Type: System.Single
Minimum accepted edge magnitude
outLines: Type: AvlNet.Line2D
Output lines
outScores: Type: System.Single
Output scores
diagGradientMagnitudeImage: Type: AvlNet.Image
Visualized gradients magnitude of an input image
diagScoreImage: Type: AvlNet.Image
Calculated score for each pixel of an input image

Description

The operation detects straight edges in the inImage using the Hough Transform approach and treats them as infinite lines. The output array is ordered from best matching to worst matching results.

The parameter inAngleResolution specifies the precision of detected lines' orientations. Value of n means the filter will be able to reliably distinguish lines in n-degree increments.

Parameters inMinAngleDelta and inMinDistance are used for neighbouring results suppression. inMinAngleDelta specifies the minimum angle between two lines while inMinDistance specifies the minimum distance between two parallel lines.

Examples

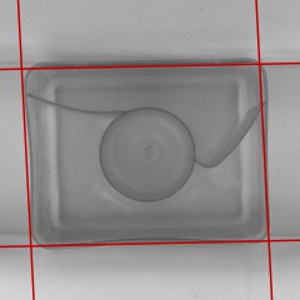

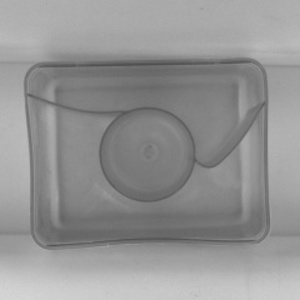

DetectLines performed on the sample image with inMinScore = 0.3.
