AVL.FitCircleToRidges(AvlNet.Image, AvlNet.CircleFittingMap, AvlNet.RidgeScanParams, AvlNet.Selection, AvlNet.LocalBlindness, float, AvlNet.CircleFittingMethod, AvlNet.MEstimator?, AvlNet.Circle2D?, AvlNet.Ridge1D?[], AvlNet.Profile, AvlNet.Profile[], AvlNet.Profile[])

Namespace:AvlNet
Assembly:AVL.NET.dll

Syntax


public static void FitCircleToRidges(
	AvlNet.Image inImage,
	AvlNet.CircleFittingMap inFittingMap,
	AvlNet.RidgeScanParams inRidgeScanParams,
	AvlNet.Selection inRidgeSelection,
	AvlNet.LocalBlindness inLocalBlindness,
	float inMaxIncompleteness,
	AvlNet.CircleFittingMethod inFittingMethod,
	AvlNet.MEstimator? inOutlierSuppression,
	out AvlNet.Circle2D? outCircle,
	out AvlNet.Ridge1D?[] outRidges,
	out AvlNet.Profile outDeviationProfile,
	out AvlNet.Profile[] diagBrightnessProfiles,
	out AvlNet.Profile[] diagResponseProfiles
)

Parameters

inImage
Type: AvlNet.Image
inFittingMap
Type: AvlNet.CircleFittingMap
inRidgeScanParams
Type: AvlNet.RidgeScanParams
inRidgeSelection
Type: AvlNet.Selection
inLocalBlindness
Type: AvlNet.LocalBlindness
inMaxIncompleteness
Type: System.Single
inFittingMethod
Type: AvlNet.CircleFittingMethod
inOutlierSuppression
Type: System.Nullable<AvlNet.MEstimator>
outCircle
Type: System.Nullable<AvlNet.Circle2D>
outRidges
Type: System.Nullable<AvlNet.Ridge1D>
outDeviationProfile
Type: AvlNet.Profile
diagBrightnessProfiles
Type: AvlNet.Profile
diagResponseProfiles
Type: AvlNet.Profile

Description

The operation tries to fit a given circle to ridges present in the inImage image. Internally, it performs a series of scans with the ScanSingleRidge filter using inFittingMap previously generated from the object being fitted. The found points are then used to determine the actual position of the circle in the image. Only inMaxIncompleteness fraction of these scans may fail. If the fitting according to the given parameters is not possible, outCircle is set to Nil.

Examples

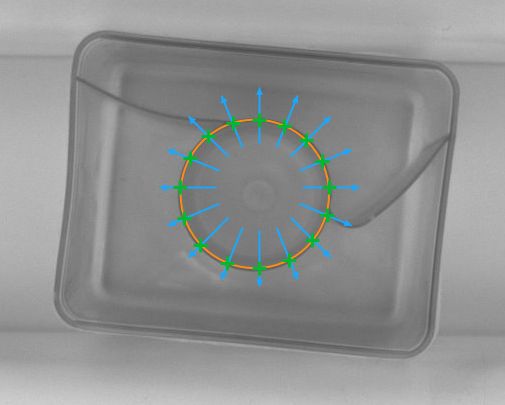

Fitting a circle to a wall of a plastic capsule
(inRidgeScanParams.Polarity = Dark, inRidgeScanParams.RidgeWidth = 3).

Remarks

For more information about local coordinate systems please refer to the following article.

This filter is a part of the Shape Fitting toolset. To read more about this technique, one can refer to the Shape Fitting chapter of our Machine Vision Guide

Hardware Acceleration

This operation supports automatic parallelization for multicore and multiprocessor systems.

Hardware acceleration settings may be manipulated with Settings class.
