AVL.DrawCoordinateSystems_SingleColor(AvlNet.Image, AvlNet.CoordinateSystem2D?[], AvlNet.CoordinateSystem2D?, AvlNet.Pixel, AvlNet.DrawingStyle, float, float, bool, AvlNet.Image)

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void DrawCoordinateSystems_SingleColor(
	AvlNet.Image inImage,
	AvlNet.CoordinateSystem2D?[] inCoordinateSystems,
	AvlNet.CoordinateSystem2D? inCoordinateSystemAlignment,
	AvlNet.Pixel inColor,
	AvlNet.DrawingStyle inDrawingStyle,
	float inArrowSize,
	float inPixelScale,
	bool inForceRgb,
	out AvlNet.Image outImage
)

Parameters

inImage: Type: AvlNet.Image
inCoordinateSystems: Type: System.Nullable<AvlNet.CoordinateSystem2D>
inCoordinateSystemAlignment: Type: System.Nullable<AvlNet.CoordinateSystem2D>
inColor: Type: AvlNet.Pixel
inDrawingStyle: Type: AvlNet.DrawingStyle
inArrowSize: Type: System.Single
inPixelScale: Type: System.Single
inForceRgb: Type: System.Boolean
outImage: Type: AvlNet.Image

This is Filter Equivalent. This function may be present in generated code, but should not be used in hand-written code.

Examples

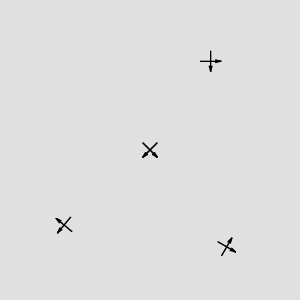

Example usage of the DrawCoordinateSystems_SingleColor on an empty image.
