AVL.SubtractFromImage(AvlNet.Image, AvlNet.Region, float, AvlNet.Image)

Subtracts a scalar value from each pixel.

Namespace:AvlNet
Assembly:AVL.NET.dll

Syntax


public static void SubtractFromImage(
	AvlNet.Image inImage,
	AvlNet.Region inRoi,
	float inValue,
	out AvlNet.Image outImage
)

Parameters

inImage
Type: AvlNet.Image
Input image
inRoi
Type: AvlNet.Region
Range of pixels to be processed, or null.
inValue
Type: System.Single
Value to be subtracted
outImage
Type: AvlNet.Image
Output image

Description

The operation decreases the brightness of the inImage by subtracting a fixed value from each of its pixels.

\forall_{i,j} \text{\textbf{OutImage} }_{i,j} = \text{\textbf{InImage} }_{i,j} - \text{\textbf{inValue} }

Whenever the resulting value exceeds the range of pixel values, it is clipped to the nearest proper value.

Examples

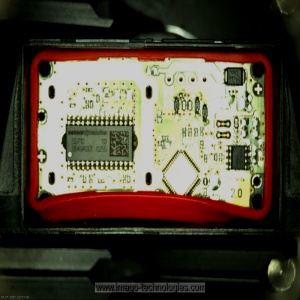

The SubtractFromImage performed on the sample image with inValue = 50.0.

Hardware Acceleration

This operation is optimized for SSE2 technology for pixels of types: UINT8, SINT8, SINT16, REAL.

This operation supports automatic parallelization for multicore and multiprocessor systems.

Hardware acceleration settings may be manipulated with Settings class.
