You are here: Start » AVL.NET » AVL.DrawLines_TwoColors(AvlNet.Image, AvlNet.Line2D?[], AvlNet.CoordinateSystem2D?, AvlNet.Pixel, AvlNet.Pixel, bool?[], AvlNet.DrawingStyle, bool, AvlNet.Image)

AVL.DrawLines_TwoColors(AvlNet.Image, AvlNet.Line2D?[], AvlNet.CoordinateSystem2D?, AvlNet.Pixel, AvlNet.Pixel, bool?[], AvlNet.DrawingStyle, bool, AvlNet.Image)

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void DrawLines_TwoColors(
	AvlNet.Image inImage,
	AvlNet.Line2D?[] inLines,
	AvlNet.CoordinateSystem2D? inLineAlignment,
	AvlNet.Pixel inColorIfTrue,
	AvlNet.Pixel inColorIfFalse,
	bool?[] inConditions,
	AvlNet.DrawingStyle inDrawingStyle,
	bool inForceRgb,
	out AvlNet.Image outImage
)

Parameters

inImage: Type: AvlNet.Image
inLines: Type: System.Nullable<AvlNet.Line2D>
inLineAlignment: Type: System.Nullable<AvlNet.CoordinateSystem2D>
inColorIfTrue: Type: AvlNet.Pixel
inColorIfFalse: Type: AvlNet.Pixel
inConditions: Type: System.Nullable<System.Boolean>
inDrawingStyle: Type: AvlNet.DrawingStyle
inForceRgb: Type: System.Boolean
outImage: Type: AvlNet.Image

This is Filter Equivalent. This function may be present in generated code, but should not be used in hand-written code.

Description

The operation draws an array of lines on the inImage using common drawing parameters for all of them. As the length of every line is infinite, they are drawn partially.

Examples

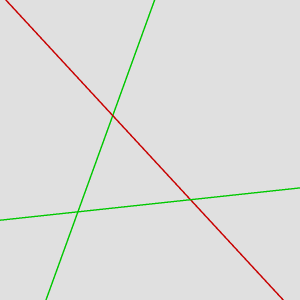

Example usage of the DrawLines_TwoColors on an empty image.

Errors
