AVL.DrawDimensionLines_SingleColor(AvlNet.Image, AvlNet.Segment2D?[], AvlNet.CoordinateSystem2D?, AvlNet.Pixel, AvlNet.DrawingStyle, float, float, AvlNet.MetricUnit, float, bool, AvlNet.Image)

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void DrawDimensionLines_SingleColor(
	AvlNet.Image inImage,
	AvlNet.Segment2D?[] inSegments,
	AvlNet.CoordinateSystem2D? inSegmentAlignment,
	AvlNet.Pixel inColor,
	AvlNet.DrawingStyle inDrawingStyle,
	float inHeadSize,
	float inScale,
	AvlNet.MetricUnit inMetricUnit,
	float inTextSize,
	bool inForceRgb,
	out AvlNet.Image outImage
)

Parameters

inImage: Type: AvlNet.Image
inSegments: Type: System.Nullable<AvlNet.Segment2D>
inSegmentAlignment: Type: System.Nullable<AvlNet.CoordinateSystem2D>
inColor: Type: AvlNet.Pixel
inDrawingStyle: Type: AvlNet.DrawingStyle
inHeadSize: Type: System.Single
inScale: Type: System.Single
inMetricUnit: Type: AvlNet.MetricUnit
inTextSize: Type: System.Single
inForceRgb: Type: System.Boolean
outImage: Type: AvlNet.Image

This is Filter Equivalent. This function may be present in generated code, but should not be used in hand-written code.

Examples

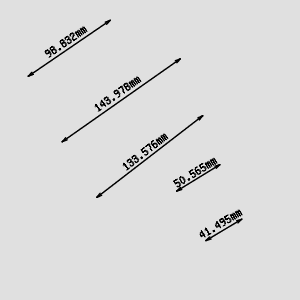

Example usage of the DrawDimensionLines_SingleColor on an empty image.
