AVL.CreateSphereMap(AvlNet.ImageFormat, AvlNet.Rectangle2D, float, int?, int, AvlNet.InterpolationMethod, AvlNet.SpatialMap, AvlNet.Region)

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void CreateSphereMap(
	AvlNet.ImageFormat inImageFormat,
	AvlNet.Rectangle2D inSphereRectangle,
	float inSphereRadiusCorrection,
	int? inNewDimension,
	int inMargin,
	AvlNet.InterpolationMethod inInterpolationMethod,
	out AvlNet.SpatialMap outSpatialMap,
	out AvlNet.Region outOutputRegion
)

Parameters

inImageFormat: Type: AvlNet.ImageFormat
inSphereRectangle: Type: AvlNet.Rectangle2D
inSphereRadiusCorrection: Type: System.Single
inNewDimension: Type: System.Nullable<System.Int32>
inMargin: Type: System.Int32
inInterpolationMethod: Type: AvlNet.InterpolationMethod
outSpatialMap: Type: AvlNet.SpatialMap
outOutputRegion: Type: AvlNet.Region

Examples

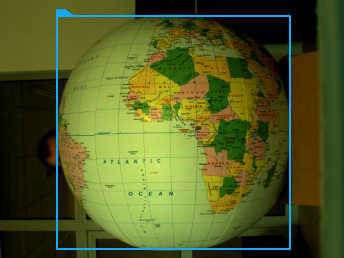

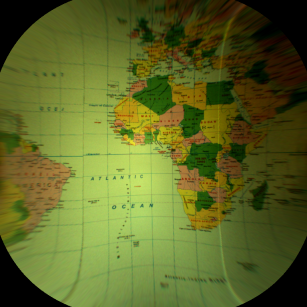

Results of applying RemapImage with a spatial map created with the CreateSphereMap filter.

Hardware Acceleration

This operation supports automatic parallelization for multicore and multiprocessor systems.

Hardware acceleration settings may be manipulated with Settings class.

Errors

Error type	Description
DomainError	Empty rectangle on input in CreateSphereMap.
