AVL.AlignCircle(AvlNet.Circle2D, AvlNet.CoordinateSystem2D, bool, AvlNet.Circle2D)
| Namespace: | AvlNet |
|---|---|
| Assembly: | AVL.NET.dll |
Syntax
public static void AlignCircle( AvlNet.Circle2D inCircle, AvlNet.CoordinateSystem2D inAlignment, bool inInverse, out AvlNet.Circle2D outCircle )
Parameters
- inCircle
- Type: AvlNet.Circle2D
- inAlignment
- Type: AvlNet.CoordinateSystem2D
- inInverse
- Type: System.Boolean
- outCircle
- Type: AvlNet.Circle2D
Description
AlignCircle aligns the inCircle to the inAlignment coordinate system. The input circle is translated, rotated and scaled.
The inAlignment is usually a coordinate system found by some template matching algorithm.
Examples
 |
 |

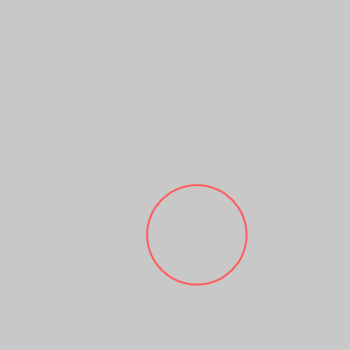

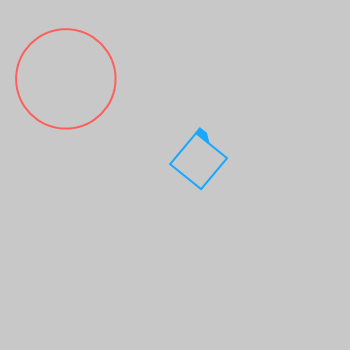

AlignCircle performed on the sample circle. The inAlignment is drawn on the first image in blue.
