AVL.AlignPath(AvlNet.Path, AvlNet.CoordinateSystem2D, bool, AvlNet.Path)
Moves a path from a local coordinate system to the absolute one.
| Namespace: | AvlNet |
|---|---|
| Assembly: | AVL.NET.dll |
Syntax
public static void AlignPath( AvlNet.Path inPath, AvlNet.CoordinateSystem2D inAlignment, bool inInverse, out AvlNet.Path outPath )
Parameters
- inPath
- Type: AvlNet.Path
Input path - inAlignment
- Type: AvlNet.CoordinateSystem2D
Coordinate system to align to - inInverse
- Type: System.Boolean
Switches to the inverse transform - outPath
- Type: AvlNet.Path
Output path
Description
AlignPath aligns the inPath to the inAlignment coordinate system. The input path is translated, rotated and scaled.
The inAlignment is usually an alignment of an object found by some template matching algorithm.
Examples
 |
 |

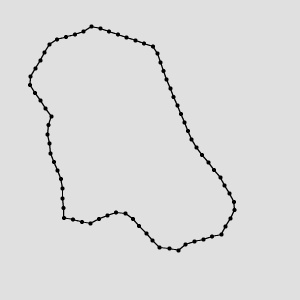

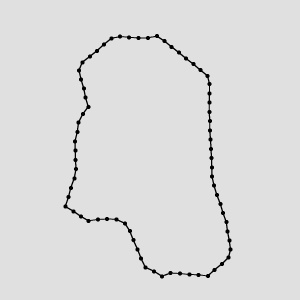

AlignPath run on the sample paths.
