You are here: Start » AVL.NET » AVL.RegionInscribedBox(AvlNet.Region, float, float?, int, int?, int, int?, AvlNet.Box?)

AVL.RegionInscribedBox(AvlNet.Region, float, float?, int, int?, int, int?, AvlNet.Box?)

Computes the largest box contained in a region.

Namespace:AvlNet
Assembly:AVL.NET.dll

Syntax


public static void RegionInscribedBox(
	AvlNet.Region inRegion,
	float inMinAspectRatio,
	float? inMaxAspectRatio,
	int inMinWidth,
	int? inMaxWidth,
	int inMinHeight,
	int? inMaxHeight,
	out AvlNet.Box? outBox
)

Parameters

inRegion
Type: AvlNet.Region
Input region
inMinAspectRatio
Type: System.Single
Minimal aspect ratio of found box
inMaxAspectRatio
Type: System.Nullable<System.Single>
Maximal aspect ratio of found box (reciprocal of inMinAspectRatio by default), or null.
inMinWidth
Type: System.Int32
Minimal width of found box
inMaxWidth
Type: System.Nullable<System.Int32>
Maximal width of found box, or null.
inMinHeight
Type: System.Int32
Minimal height of found box
inMaxHeight
Type: System.Nullable<System.Int32>
Maximal height of found box, or null.
outBox
Type: System.Nullable<AvlNet.Box>
Found box with largest area

Examples

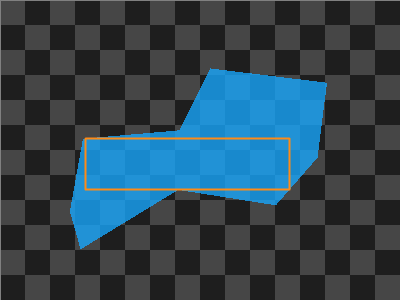

RegionInscribedBox performed on a sample region with inMaxAspectRatio = Auto.

RegionInscribedBox performed on a sample region with inMaxAspectRatio = 2.0.
